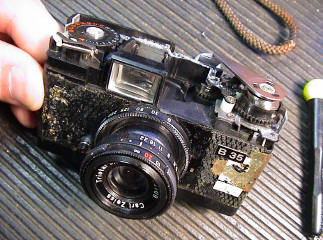

Looking a real mess with leatherette and top plate removed.

Not so obvious, but still visible is the plastic wind gear.
I think the Rollei 35 is another over-rated camera.  The 35B pictured here is the Singapore version made under license.  There is no doubt that any of these cameras will take a fine photograph, but from an engineering viewpoint they are a bit tacky. and delicate.  Still, they are easy to work on and can almost always be repaired.   Simplicity is their saving grace.

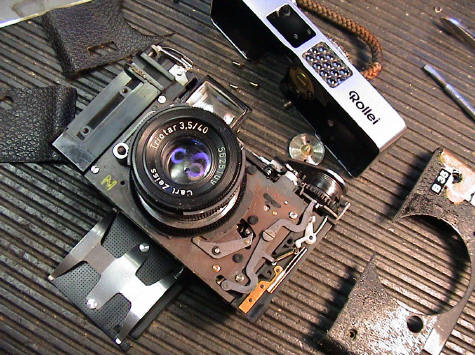

With more body panels removed we can see how the lens/shutter combo is attached to a metal plate along with it's release mechanism and in turn  is screwed to the plastic chassis.

Rollei was ahead of its time in the use of metal parts bolted to plastic parts for the sake of marketing image and cheap manufacture.

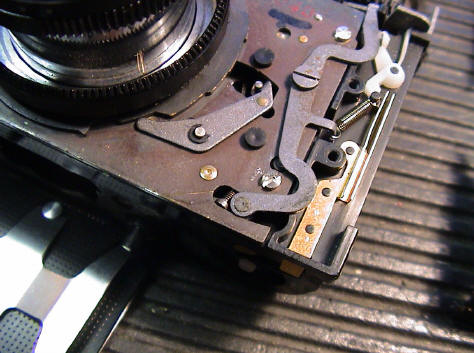

This little screw had come away from the rear of the lens barrel, inside the film gate, and had found its way to the front of the body down here.  The winder jammed up and it was lucky that  the plastic gearing had not been forced and stripped of teeth.
The same can not be said of the plastic lens release mechanism which had been forced and broken in an effort to close the camera in the jammed state.







In the image to the right we can also already indentify the source of this camera's wind-on jamming problem.

See if you can spot it before looking at the next image.  Note also the (arrow) flash trigger part complete with built in plastic spring.























































   Click here to return to Index

All material Copyright Robert Ian Axford

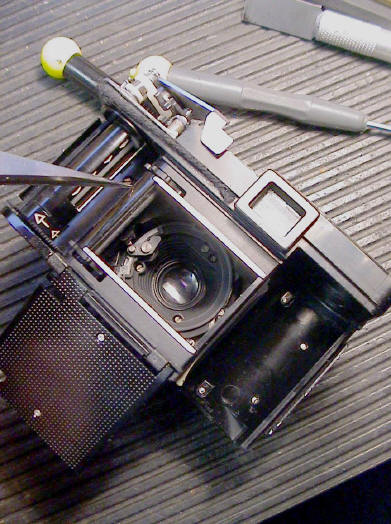

The orange arrow shows where the screw that caused this camera's problems originally came from.

I really can't say I've ever been impressed with these things.

(I can be a little scathing at times... just ignore me if these are your favorite babies... they are perfectly good cameras)
